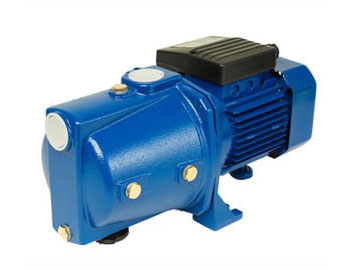

JETN Self-priming Pumps

Application field

APPLICATIONS

- Selfpriming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.

- Able to pump up to mt.8 depth and work perfectly even in soda-water.

- Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.


OPERATING LIMITS
- Suction lift up to 9m with foot valve.
- Maximum operating pressure: 8 bar.
- Maximum ambient temperature: +40℃ .
- Liquid temperature up to +60℃ .
- Maximum altitude +1000m.
DESIGN FEATURES
- Pump body: cast iron.
- Impeller: Brass or PPO or "General Electric".
- Ejector union: PPO or "General Electric".
- Internal thermal protector.
- Motor shaft: AISI1045.
- Mechanical seal: NBR/Graphite/Ceramic.

SPECIAL FEATURES ON REQUEST
- Stainless steel welding shaft.
- AISI420/AISI304/AISI316 stainless steel shaft.
- FPM/EPDM/SIC/WC mechanical seal.
- Other voltage and frequency.
- Three phase power.

PRODUCTION STANDARD
- IEC 60034-1 - IEC 335-1
- IEC 34-1 - ISO 2548

MOTOR
- Pump body: cast iron.
- Impeller: Brass or PPO or "General Electric".
- Ejector union: PPO or "General Electric".
- Motor shaft: AISI1045.
- Mechanical seal: NBR/ Graphite/ Ceramic.

OPERATING LIMITS

TYPE Power цF Ampere
I max. 		Q
l/min 		0 10 20 30 40 45 50 60 70 110 DNA DNM N.W
(kg) 		PACKAGE DIMENSION
LxWxH(mm)
HP KW (m³/h) 0 0.6 1.2 1.8 2.4 2.7 3.0 3.6 4.2 6.6
JET50N 0.5 0.37 12 3.2 H
(m) 		42 35 28 23.5 18 - - - - 1" 1" 11.6 430 200 205
JET75N 0.75 0.55 16 3.7 45.5 40 33.5 28.5 24 16 - - - 1" 1" 14.6 460 215 225
JET100N 1 0.75 20 4.5 52 45.5 40 35.5 31.5 30 25 7.5 - 1" 1" 15.6 460 215 225
JET150N 2 1.5 30 8 53 51 46 41 38.5 37 36 32.6 30 8 1.25" 1" 36 580 265 215
JET200N 3 2.2 45 10 65 63 61 59 57 55 54 51 47 45 1.25" 1" 38 580 265 215
