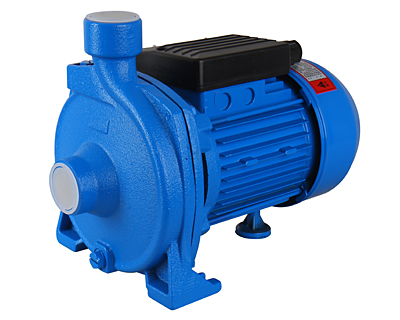

SCM Series Centrifugal Pumps

Application field

APPLICATIONS

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.


OPERATING LIMITS
- Suction lift up to 6-8m with foot valve.
- Maximum operating pressure: 8 bar.
- Maximum ambient temperature: +40℃ .
- Liquid temperature up to +90℃ .
- Maximum altitude +1000m.

DESIGN FEATURES

- Pump body: cast iron.
- Impeller: Brass or PPO or "General Electric".
- Motor shaft: AISI1045.
- Mechanical seal: NBR/ Graphite/Ceramic.
- Internal thermal protector.

SPECIAL FEATURES ON REQUEST
- Stainless steel welding shaft.
- AISI420/AISI304/AISI316 stainless steel shaft.
- FPM/EPDM/SIC/WC mechanical seal.
- Other voltage and frequency.
- Three phase power

PRODUCTION STANDARD

- IEC 60034-1 - IEC 335-1
- IEC 34-1 - ISO 2548

MOTOR
- Single phase power supply with capacitor
permanently activated.
- Insulation class: B
- Protection: IP44
- Speed of rotation:2850rpm
- Continuous duty: S1

OPERATING LIMITS

TYPE Power цF Ampere
I max. 		Q
l/min 		0 10 20 30 40 45 50 55 DNA DNM N.W
(kg) 		PACKAGE DIMENSION
LxWxH(mm)
HP KW (m³/h) 0 0.6 1.2 1.8 2.4 2.7 3.0 3.6
SCM100 1 0.75 20 5 H
(m) 		30 29 27.5 26 23 17 - - 1" 1" 13.5 320 220 265
SCM150 1.5 1.1 30 7 37 35 33 31 29 26.5 24 - 1.5"/1" 1"/1" 21 365 235 300
SCM200 2 1.5 30 8.2 40.5 39 37 35.5 34 31 28 - 1.5"/1" 1"/1" 25.5 365 255 330
SCM300 3 2.2 45 10.5 46 44.5 43 41 38 35 33 31 1.5" 1" 27 375 260 315
